Aluminum Alloy Anti-Theft Casement Window

Aluminum Alloy Anti-Theft Casement Window is designed according to triangular mechanics, and uses large bevels to strengthen the pressure line, which greatly improves the wind pressure resistance of the window frame, making the doors and windows safer, and also achieves a visual three-dimensional atmospheric effect with a more linear feel.

Send Inquiry

Product Description

Product features:

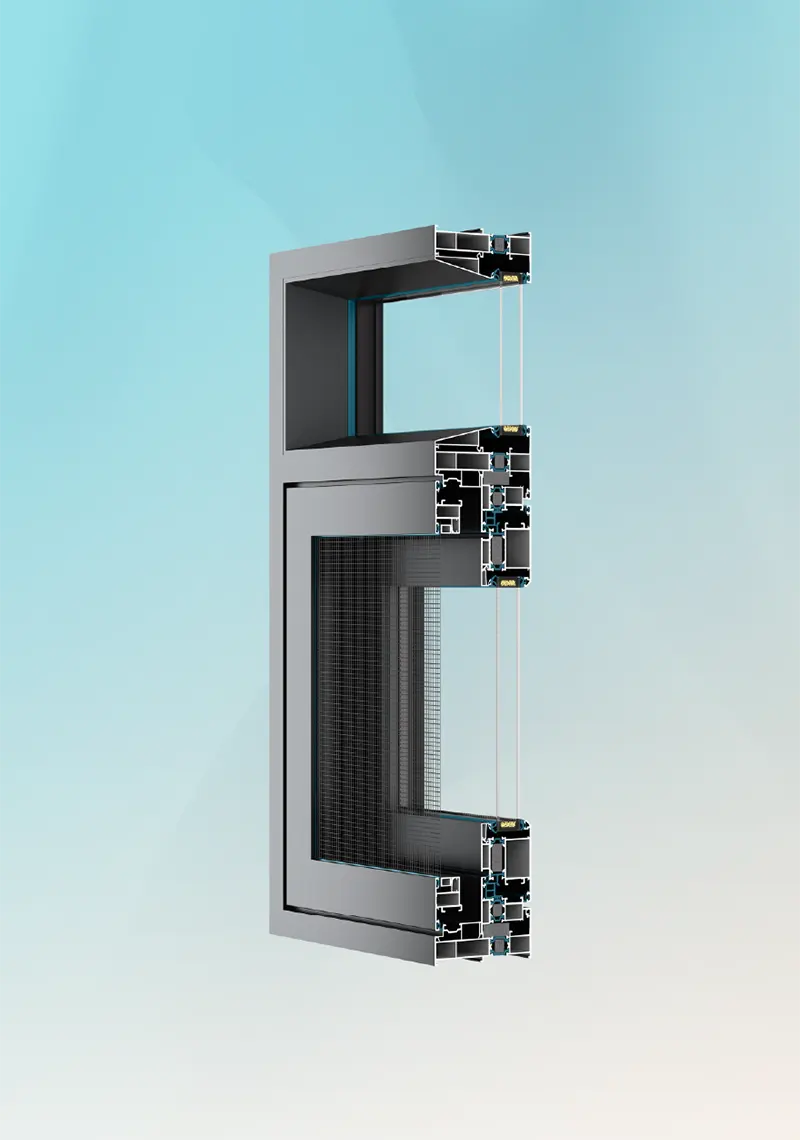

1. Aluminum Alloy Anti-Theft Casement Window adopts an internal and external flat frame design, with a simple and flat appearance, exquisite craftsmanship, and a light luxury and narrow style in the middle, presenting a modern minimalist beauty to enjoy the wide field of vision.

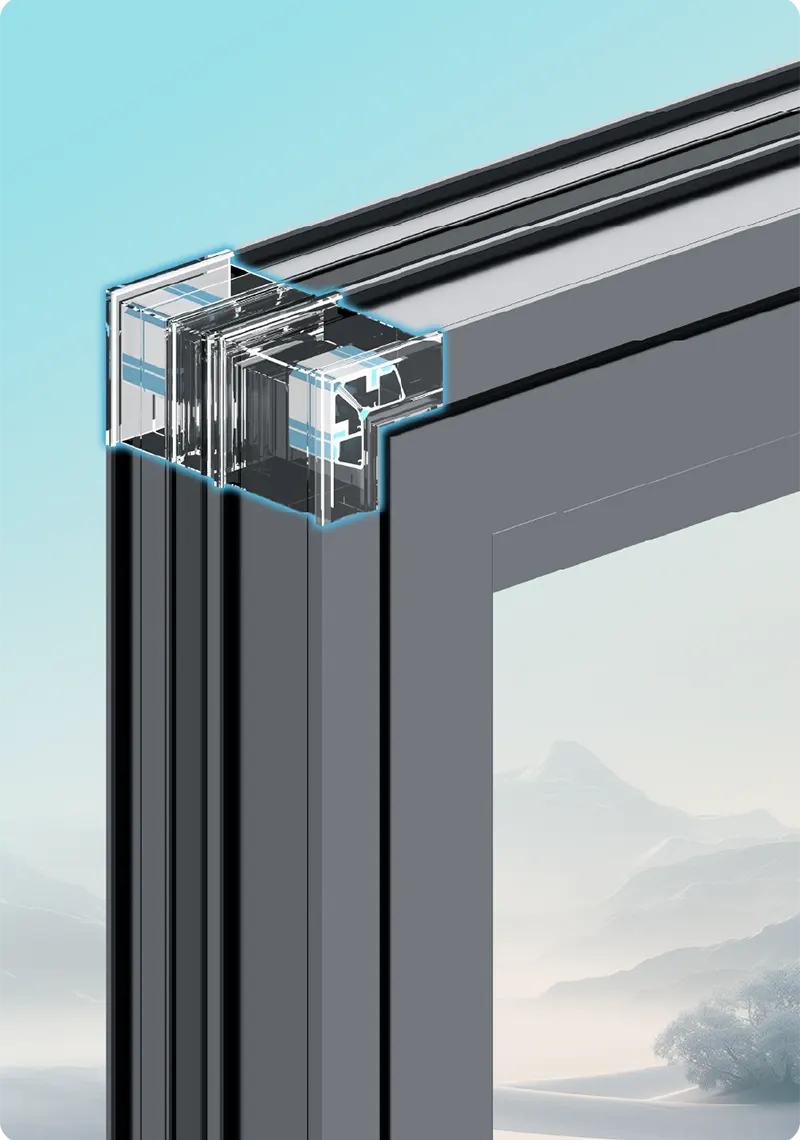

2. The 45-degree corner position is coated with cross-section anti-seepage glue, and the glue injection corner code is installed to greatly improve the overall connection strength of the broken bridge anti-theft casement window frame, perfectly solve the problem of the gap between the profiles, and optimize the waterproof and wind pressure resistance.

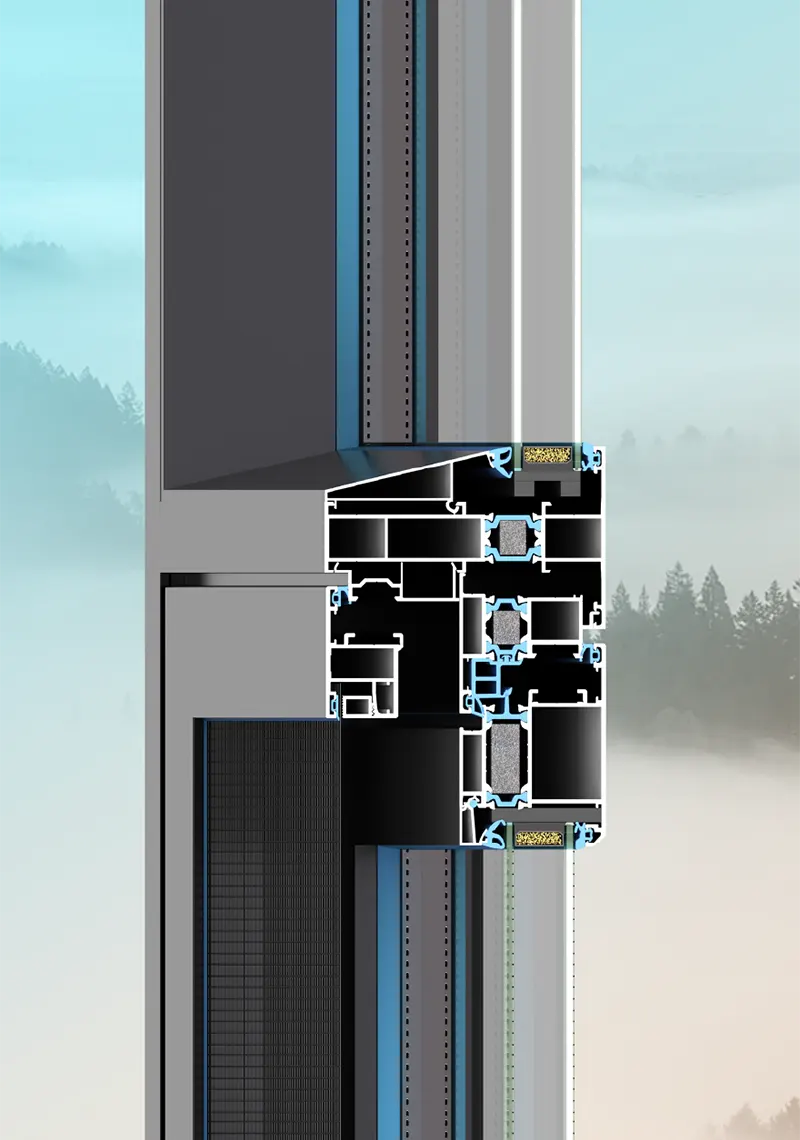

3.The sound insulation cavity is filled with polyurethane filler, which has the advantages of high-efficiency insulation and ultra-low temperature conductivity. The thermal insulation performance of the Aluminum Alloy Anti-Theft Casement Window is effectively improved.


4.Aluminum Alloy Anti-Theft Casement Window has exquisite craftsmanship, fashionable and atmospheric, and high anti-corrosion performance. The surface is anodized or sprayed, and it feels smooth and delicate. The antibacterial rate is greater than 99%, leaving no marks when opened, simple and beautiful, and inhibiting bacterial growth.

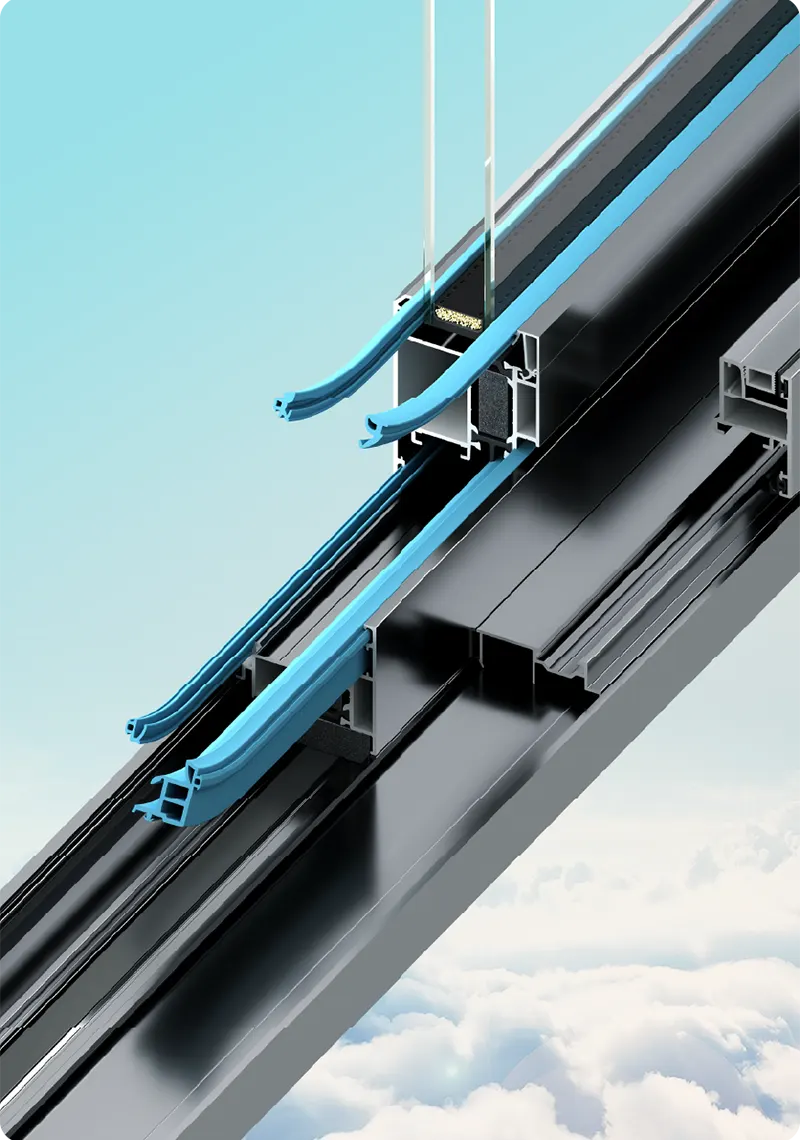

5.Using EPDM sealing strips, through sealing strips, composite isobaric strips, etc. to form multiple sealing barriers, improve the sound insulation performance of the broken bridge anti-theft casement window, and enhance water tightness and air tightness, creating a comfortable and warm environment for your home.


Product Parameters

Standard hardware

Ximek

Glass configuration

5+20A+5/ 12+15A+12

Profile wall thickness

1.8mm thick 6063-T5 aluminum profile

Crimp line selection

Square pressure line, oblique pressure line

Insulation strip width

22mm wide PA66 single cavity insulation strip
